Arctos Robotics: Build A Robot Arm Out Of 3D Printer Spares?

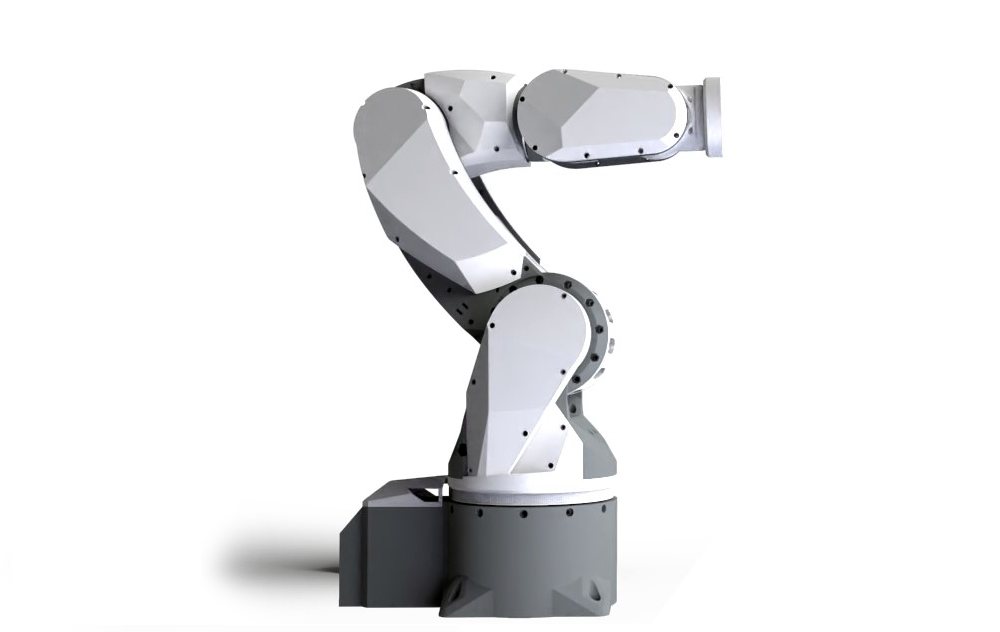

ARCTOS is a 6-DOF robot arm based upon 3D printed mechanics running a modified version of GRBL firmware. Let’s get this straight now, the firmware is open source, but the hardware plans are a paid download, but for less than forty euros, we reckon the investment would be well worth it, judging from the quality of the build instructions and the software support already in place.

Looking at the bill of materials, there’s nothing there that is a challenge to source. The mechanical parts and casings are designed to be printed in PLA, requiring 3 kg of filament. The required layer height is 0.28mm, with a 0.4mm nozzle, so should easy to find in any decent hackerspace. The motors are the usual NEMA17 and NEMA23 steppers, paired with GT2 pullies and belts. The only required special parts are a couple of lengths of 4mm smooth stainless rod, and some M4 and M3 threaded rods, all…
